Carbon Dental Materials

DB 4000

DB 4000

Engineered tough. Printed precise.

Engineered tough.
Printed precise.

Carbon's DB 4000 is a production-ready, high-impact denture base resin engineered to deliver exceptional clinical performance while providing better economics for dental labs than leading alternatives.*

Carbon's DB 4000 is a production-ready, high-impact denture base resin engineered to deliver exceptional clinical performance while providing better economics for dental labs than leading alternatives.*

Order Now

View Workflow

Documentation

Why Labs Should Choose DB 4000

Competitive cost per part.*

FDA-cleared Class II medical device.

ISO 20795-1 Hi-Impact compliant.

4,000 J/m² work of fracture . 31% tougher than the category leader.*

97% print accuracy, surpassing the category leader.*

Familiar single-cure workflow.

* Data on file. Based on MSRP

What DB 4000 Offers Your Lab

Why DB 4000 Sets the New Standard for Denture Bases

Outcomes Engineered for the Modern Dental Lab

Outcomes Engineered for the
Modern Dental Lab

High Print Accuracy

97% global accuracy within ±130µm and 95% intaglio accuracy within ±100µm — surpassing the category leader

Maximize Lab Profitability

Competitive cost per part, without compromising strength, accuracy, or workflow efficiency.*

Calculate My Savings

High Work of Fracture

4,000 J/m² work of fracture tested at 37°C in water. That's 31% tougher than the category leader's published results.*

ISO 20795-1 Hi-Impact Compliant

Validated to the international standard for high-impact denture base.

FDA-Cleared Class II Device

Cleared for the fabrication of dental devices for fully edentulous patients.

Familiar Single-Cure Workflow

One-part, single-cure system — no additional materials, processing steps, or workflow changes required.

*Data on file. Based on MSRP.

Hero image
Hero image
Hero image

performance

performance

The Number is the Proof

The Number is the Proof

Most products earn a name. DB 4000
earned its number.

Most products earn a name. DB 4000
earned its number.

DB 4000 isn't a product code — it's a mechanical property claim. At 4,000 J/m² work of fracture , tested at 37°C in water under modified ISO 20795-1 conditions. That's 31% tougher than the category leader's published results*, measured in a simulated oral environment.

DB 4000 isn't a product code — it's a mechanical property claim. At 4,000 J/m² work of fracture , tested at 37°C in water under modified ISO 20795-1 conditions. That's 31% tougher than the category leader's published results*, measured in a simulated oral environment.

Order Now

Calculate My Savings

4,000 J/m²

work of fracture — vs. 3,047 J/m² for the category leader (+31%)*

>65 MPa

flexural strength at 37°C in water

3.7 MPa·m0.5

fracture toughness at body temperature

>2,000 MPa

flexural modulus at 37°C in water

*Data on file. Category leader is established by the most used resin on Carbon printers. Results measured from the number of denture base printed parts by brand validated on Carbon printers.

performance

The Number is the Proof

Most products earn a name. DB 4000 earned its number.

DB 4000 isn't a product code — it's a mechanical property claim. At 4,000 J/m² work of fracture , tested at 37°C in water under modified ISO 20795-1 conditions. That's 31% tougher than the category leader's published results*, measured in a simulated oral environment.

Order Now

Calculate My Savings

4,000 J/m²

work of fracture — vs. 3,047 J/m² for the category leader (+31%)*

>65 MPa

flexural strength at 37°C in water

3.7 MPa·m0.5

fracture toughness at body temperature

>2,000 MPa

flexural modulus at 37°C in water

*Data on file. Category leader is established by the most used resin on Carbon printers. Results measured from the number of denture base printed parts by brand validated on Carbon printers.

LAB VALIDATION

With DB 4000 we're not compromising. We get strength, value, and scalability with printing.

Kaila Nakanishi - Nakanishi Dental Lab

Order Now

view workflow

LAB VALIDATION

With DB 4000 we're not compromising. We get strength, value, and scalability with printing.

Kaila Nakanishi - Nakanishi Dental Lab

Order Now

view workflow

ROI Calculator

See What DB 4000 Could Mean for Your Lab

Adjust the sliders below to estimate potential material savings based on your monthly denture part volume and current material cost.

Monthly savings$13,084
Your material cost per part$10.79
DB 4000 cost per part$5.56
Current estimated monthly cost$26,975
Estimated monthly spend with DB 4000$13,891
ROI Calculator

See What DB 4000 Could Mean for Your Lab

Adjust the sliders below to estimate potential material savings based on your monthly denture part volume and current material cost.

Monthly savings$13,084
Your material cost per part$10.79
DB 4000 cost per part$5.56
Current estimated monthly cost$26,975
Estimated monthly spend with DB 4000$13,891

High Print Accuracy

DB 4000 delivered 97% global accuracy within ±130µm and 95% intaglio accuracy within ±100µm, surpassing the category leader.*

Engineered for dimensional accuracy, DB 4000 and its printing workflow accurately reproduce the original STL specifications in the final printed denture, supporting consistent, well-fitting denture bases.

The color scale helps visualize dimensional deviations between the STL and the scanned denture. Warmer colors are positive and cooler colors are negative deviations in microns.

The green results show passing of internal accuracy specifications
and the orange results are failing.

*Data on file.

High Print Accuracy

DB 4000 delivered 97% global accuracy within ±130µm and 95% intaglio accuracy within ±100µm, surpassing the category leader.*

Engineered for dimensional accuracy, DB 4000 and its printing workflow accurately reproduce the original STL specifications in the final printed denture, supporting consistent, well-fitting denture bases.

The color scale helps visualize dimensional deviations between the STL and the scanned denture. Warmer colors are positive and cooler colors are negative deviations in microns.

The green results show passing of internal accuracy specifications
and the orange results are failing.

*Data on file.

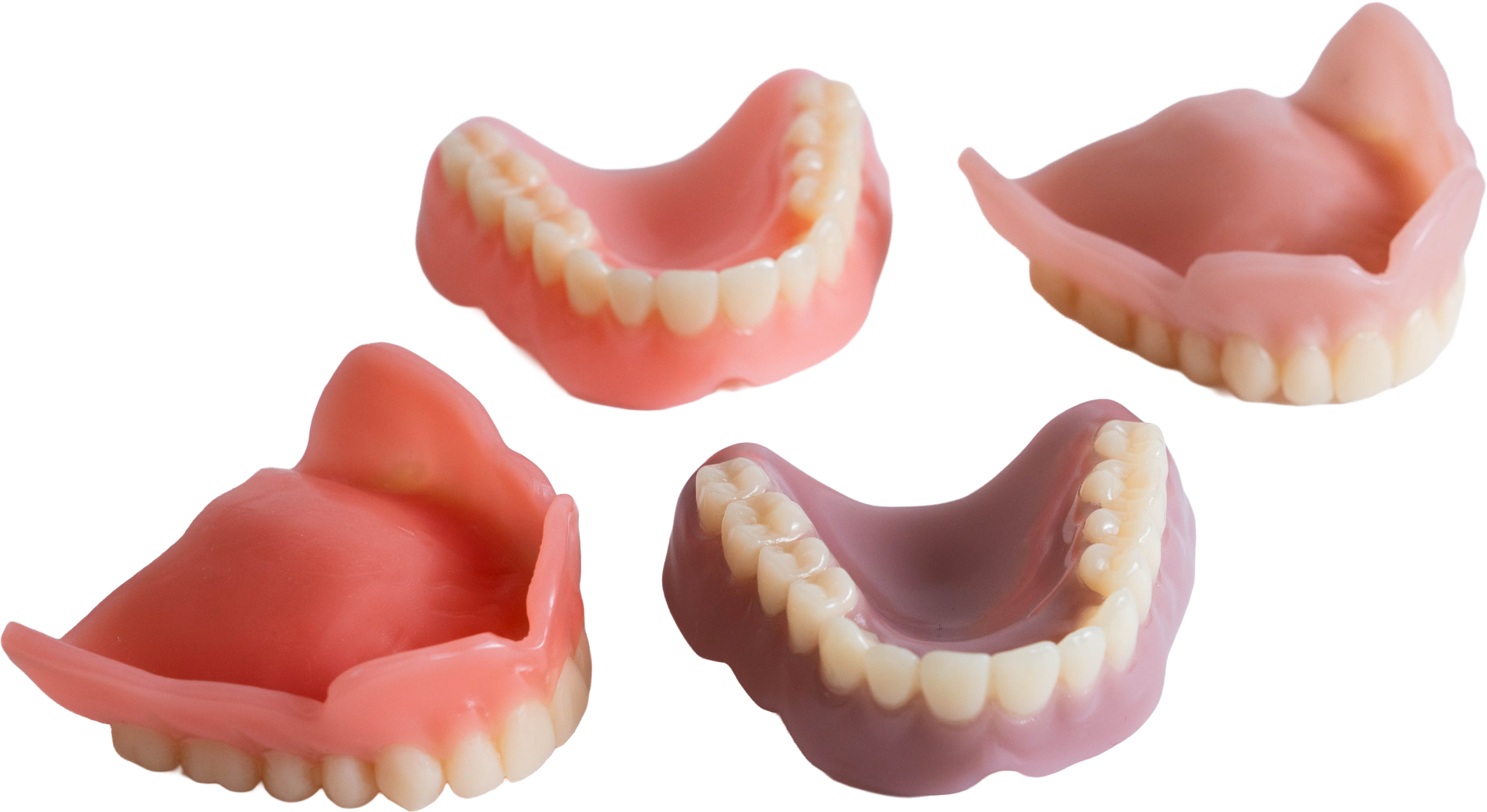

AVAILABLE SHADES

Natural Gingival Shade Matching

DB 4000 is available in four gingiva shades, offering coverage across light, standard, and deeply pigmented tissue tones.

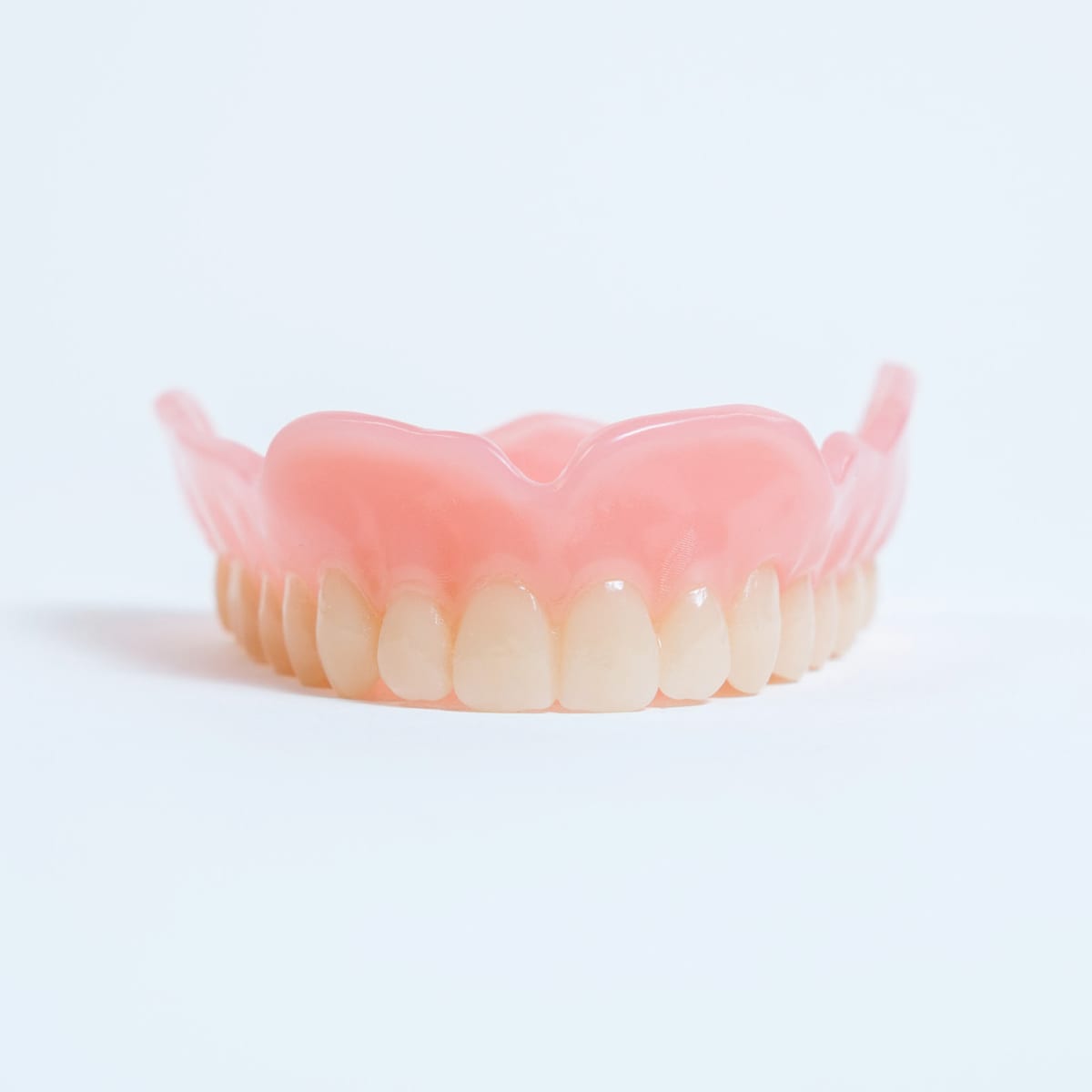

Light Pink
Light Pink
Light Pink

Technical Specifications*

Technical Specifications*

DB 4000 Material Properties

DB 4000 Material Properties

DB 4000 combines high work of fracture, print accuracy, and biocompatibility to enable labs to produce reliable, durable and aesthetic  denture bases.

DB 4000 combines high work of fracture, print accuracy, and biocompatibility to enable labs to produce reliable, durable and aesthetic  denture bases.

view more dental materials

Hero image
Property
Method
Requirement
DB4000 High Impact
Flexural Modulus at 37°C in Water
ISO 20795-1
>2,000 MPa
>2,000 MPa
Flexural Strength at 37°C in Water
ISO 20795-1
>65 MPa
>65 MPa
Work of Fracture at 23°C in Air
ISO 20795-1
>900 J/m²
>900 J/m²
Fracture Toughness at 23°C in Air
ISO 20795-1
>1.9 MPa·m⁰·⁵
>1.9 MPa·m⁰·⁵
Work of Fracture at 37°C in Water
Modified ISO 20795-1
N/A
4,000 J/m²
Fracture Toughness at 37°C in Water
Modified ISO 20795-1
N/A
3.7 MPa·m⁰·⁵
Water Sorption
ISO 20795-1
<32 µg/mm³
<32 µg/mm³
Water Solubility
ISO 20795-1
<1.6 µg/mm³
<1.6 µg/mm³
Free Monomer Extraction
ISO 20795-1
<2.2% residual methacrylate
Pass
Color Stability
ISO 20795-1
No more than a slight color change
Pass
Cytotoxicity
ISO 10993-5
<grade 2 mild reactivity
Pass
Irritation
ISO 10993-23
Test/control mean score difference ≤1.0
Pass
Sensitization
ISO 10993-10
No significant allergic response vs. control
Pass

technical data sheet

*DB 4000 TDS. Data on file.

Property
Method
Requirement
DB4000 High Impact
Flexural Modulus at 37°C in Water
ISO 20795-1
>2,000 MPa
>2,000 MPa
Flexural Strength at 37°C in Water
ISO 20795-1
>65 MPa
>65 MPa
Work of Fracture at 23°C in Air
ISO 20795-1
>900 J/m²
>900 J/m²
Fracture Toughness at 23°C in Air
ISO 20795-1
>1.9 MPa·m⁰·⁵
>1.9 MPa·m⁰·⁵
Work of Fracture at 37°C in Water
Modified ISO 20795-1
N/A
4,000 J/m²
Fracture Toughness at 37°C in Water
Modified ISO 20795-1
N/A
3.7 MPa·m⁰·⁵
Water Sorption
ISO 20795-1
<32 µg/mm³
<32 µg/mm³
Water Solubility
ISO 20795-1
<1.6 µg/mm³
<1.6 µg/mm³
Free Monomer Extraction
ISO 20795-1
<2.2% residual methacrylate
Pass
Color Stability
ISO 20795-1
No more than a slight color change
Pass
Cytotoxicity
ISO 10993-5
<grade 2 mild reactivity
Pass
Irritation
ISO 10993-23
Test/control mean score difference ≤1.0
Pass
Sensitization
ISO 10993-10
No significant allergic response vs. control
Pass

technical data sheet

*DB 4000 TDS. Data on file.

Workflow

Simple, Familiar, and Built
for Dental Labs

Simple, Familiar,
and Built
for Dental Labs

DESIGN PRINT FUSE TEETH CURE FINISH SHIP

01

Case Intake

Receive scans and prescription.

02

Digital Design

Design the denture base in your CAD software.

03

3D Printing

Load DB 4000 resin, run the validated print job on Carbon's M-Series platform with DLS™ technology.

04

Fuse Teeth, Cure, Finish & Deliver

Single Cure, Finish
& Deliver

Fuse teeth and cure per validated protocol. Finish and polish. Package and ship.

From design to delivery, the workflow mirrors what technicians already know:
Design → Print → Fuse Teeth → Cure → Finish → Ship.

view detailed workflow

Compatible Hardware

Compatible Hardware

Validated on Carbon's DLS Platform

Validated on Carbon's DLS Platform

DB 4000 is validated on Carbon's M-series printers. All printers deliver the same DLS™ accuracy with fleet-level consistency.

DB 4000 is validated on Carbon's M-series printers. All printers deliver the same DLS™ accuracy with fleet-level consistency.

Recommended

M2

The ideal platform for dental labs — compact footprint, high print accuracy, and validated DB 4000 workflow.

Explore

Explore

Recommended

M2

The ideal platform for dental labs — compact footprint, high print accuracy, and validated DB 4000 workflow.

Explore

High Throughput

M3

A scalable solution for growing dental labs — higher throughput, larger build volume, and validated DB 4000 production workflows.

Explore

Explore

High Throughput

M3

A scalable solution for growing dental labs — higher throughput, larger build volume, and validated DB 4000 production workflows.

Explore

Production

M3 Max

Maximum production capacity for large labs — expanded build volume and validated DB 4000 workflows for high-volume dental manufacturing.

Explore

Explore

Production

M3 Max

Maximum production capacity for large labs — expanded build volume and validated DB 4000 workflows for high-volume dental manufacturing.

Explore

Don't have a Carbon printer yet? We'll help you find a certified lab partner near you.

connect with a lab

Resources & Downloads

Resources & Downloads

Everything You Need
to Get Started

Everything You Need
to Get Started

Hero image

Technical Data Sheet

Full technical properties & test methods for DB 4000.

Technical Data Sheet

DB 4000 Brochure

Highlights DB 4000's key advantages for your lab.

DB 4000 Brochure

DB 4000 IFU

Instructions for Use — required documentation for lab use of DB 4000 as an FDA-cleared device.

DB 4000 IFU

DB 4000 SDS

Safety Data Sheet — composition, handling, and hazard information for DB 4000 resin.

DB 4000 SDS

Resources & Downloads

Everything You Need
to Get Started

Hero image

Technical Data Sheet

Full technical properties & test methods for DB 4000.

Technical Data Sheet

DB 4000 Brochure

Highlights DB 4000's key advantages for your lab.

DB 4000 Brochure

DB 4000 IFU

Instructions for Use — required documentation for lab use of DB 4000 as an FDA-cleared device.

DB 4000 IFU

DB 4000 SDS

Safety Data Sheet — composition, handling, and hazard information for DB 4000 resin.

DB 4000 SDS
